Products　|　　Cloud Security

PCI-E Cryptography Accelerator Cards

Overview:

C*Core’s high-speed crypto cardare designed based on the security chip -CCP90xT (CCP903T/CCP907T, etc.). They compliant with the relevant PCI-E technical specifications of the State Cryptography Administration and support national crypto algorithms such as SM2, SM3, and SM4.Besides, they can provide high-speed cryptographic computation services including multi-threading, multi-processing,and parallel processing across multiple cards for various trusted computing secure platforms., . They are sufficient for the requirements for digital signature/verification, asymmetric/symmetric encryption and decryption, data integrity verification, true random number generation, key generation and management, ensuring the security, authenticity, integrity, and non-repudiation of sensitive data. The products support mainstream operating systems such as Windows and Linux, as well as China Operating System such as Kylin and UOS.




Appearance:

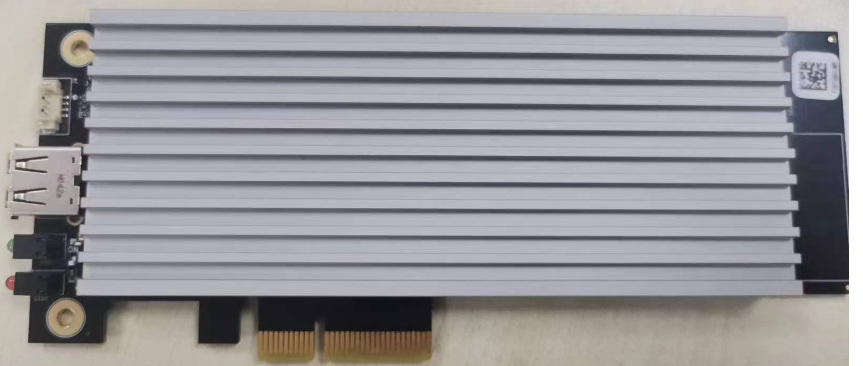

Quantum PCI-E Crypto Card
165mm*67.5mm*13.5mm

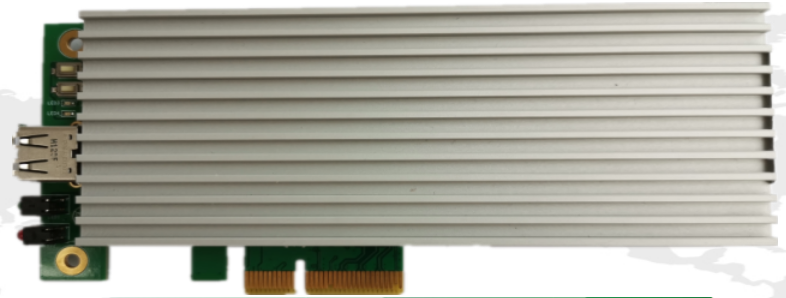

PCI-E Crypto Card
154mm*68mm*16.6mm

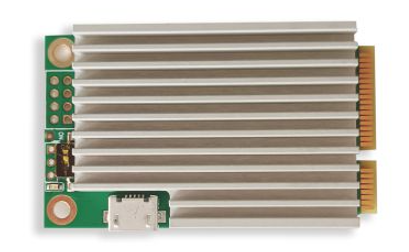

Mini  PCI-E Crypto Card
51mm*30.4mm*8mm

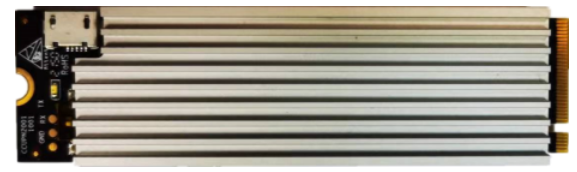

M.2 Interface Crypto Card
80mm*22mm*7.5mm


Functional Characteristics

  • Crypto Algorithms

    ? Public Key Algorithms: SM2/RSA/SM9

    ? Symmetric Algorithms: SM4/AES/DES/3DES

    ? Hash Algorithms: SM3/SHA1/SHA224/SHA256/SHA384/SHA512/MD5/HMAC

  • Key Management

    ? Three-level key management system

    ? Secure key memory and management

    ? Key backup and recovery

  • Privilege Management

    ? User Privileges: Two-level management including administrator and operator.

    ? Privilege Carrier: Accompanying C*Core’s UKEY for user privilege management

  • Virtualization Support

    ? CCP907T supports hardware-based virtualization technology SR-IOV, which can be applied to virtual machine environments such as KVM.

  • Product Qualification

    ? Level II and level III of crypto module for commercial crypto product certification

  • Advantages

    ? Single master crypto card solution

    ? High integration and simple hardware design

    ? Unified platform design for convenient development

    ? Serialized products to meet various performance requirements

    ? Rich product forms, including half-height cards, MINI-PCIE cards, M.2 cards, etc.

    ? Supporting for rapid access

Typical Application

? Signature/Verification Server

? Security Gateway

? Firewall

? Trusted Computing

? 5G Communication Security

? Surveillance

? Cloud Server Crypto Machine


Technical Support

? Complete PCI-E drivers and algorithm invocation demo programs

? SDF interface library and demo programs compliant with interface specifications of cryptography device application
